ESQ-103-13-G-D

Samtec, Inc.

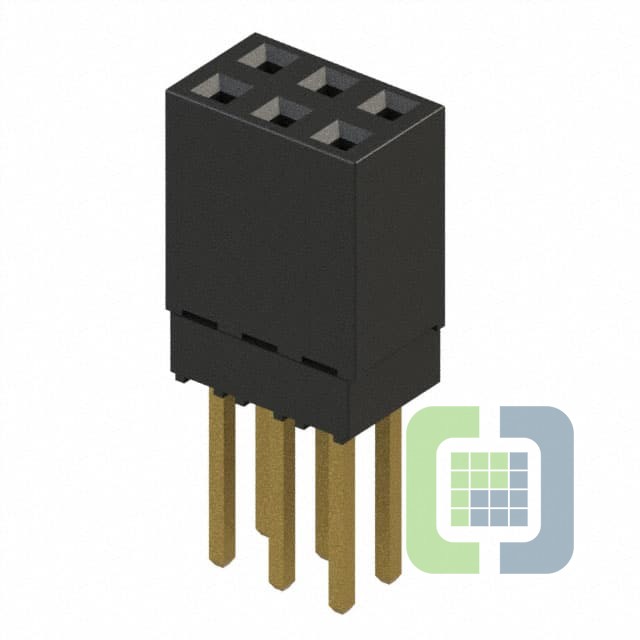

ESQ-103-13-G-D Gallery image caption
In Stock: 152

Can ship immediately

Pricing:
  • 1$2.37
  • 10$1.96449
  • 100$1.47353
  • 500$1.22794
  • 1,000$1.08878
  • 5,000$1.02329
  • 10,000$1.00282

Quote It

Technical Details

  • Series:ESQ
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Elevated Socket
  • Contact Type:Forked
  • Style:Board to Board
  • Number of Positions:6
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Insulation Color:Black
  • Insulation Height:0.435" (11.05mm)
  • Contact Length - Post:0.290" (7.37mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):5.7A per Contact
  • Voltage Rating:550VAC
