SQW-108-01-F-D-VS

Samtec, Inc.

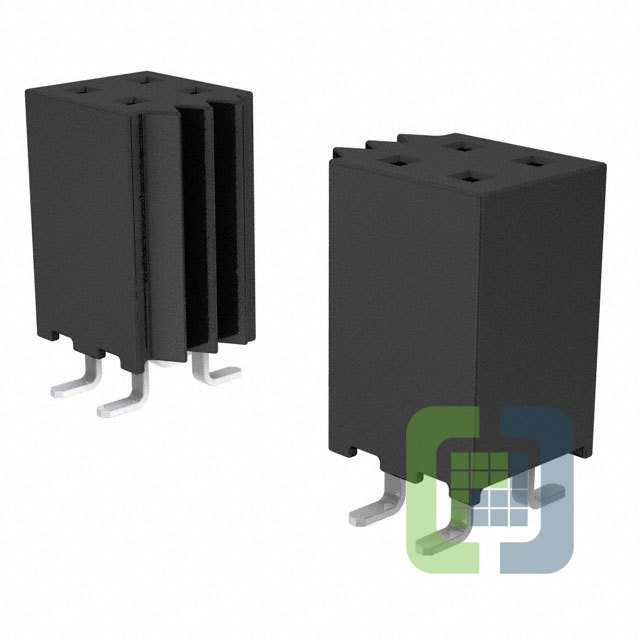

SQW-108-01-F-D-VS Gallery image caption
In Stock: 413

Can ship immediately

Pricing:
  • 1$2.45
  • 10$2.02593
  • 100$1.51959
  • 500$1.26633
  • 1,000$1.12281
  • 5,000$1.05527

Quote It

Technical Details

  • Series:SQW
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Forked
  • Style:Board to Board or Cable
  • Number of Positions:16
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.00µin (0.076µm)
  • Insulation Color:Black
  • Insulation Height:0.300" (7.62mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3.8A per Contact
  • Voltage Rating:-
