ESQ-108-13-G-S

Samtec, Inc.

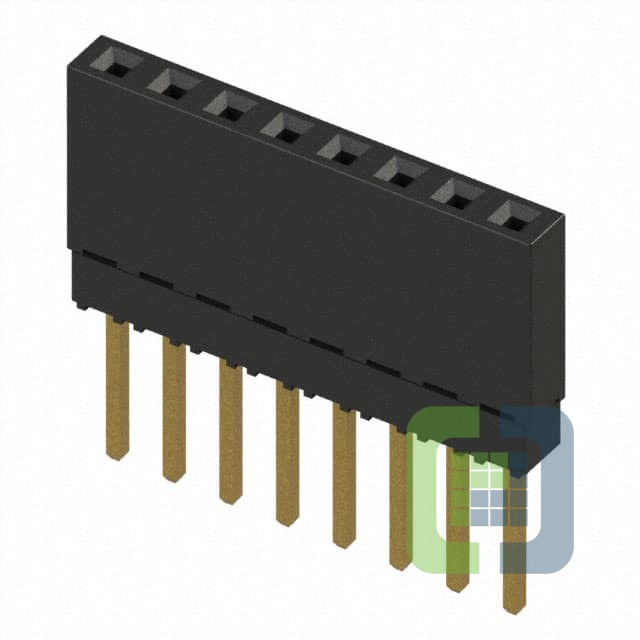

ESQ-108-13-G-S Gallery image caption
In Stock: 322

Can ship immediately

Pricing:
  • 1$2.45
  • 27$1.90038
  • 108$1.5203
  • 513$1.26692
  • 1,026$1.12333
  • 5,022$1.05576
  • 10,017$1.03465

Quote It

Technical Details

  • Series:ESQ
  • Package:Tube
  • Part Status:Active
  • Connector Type:Elevated Socket
  • Contact Type:Forked
  • Style:Board to Board
  • Number of Positions:8
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Insulation Color:Black
  • Insulation Height:0.435" (11.05mm)
  • Contact Length - Post:0.290" (7.37mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):5.7A per Contact
  • Voltage Rating:550VAC
