HLE-106-02-L-DV-TE

Samtec, Inc.

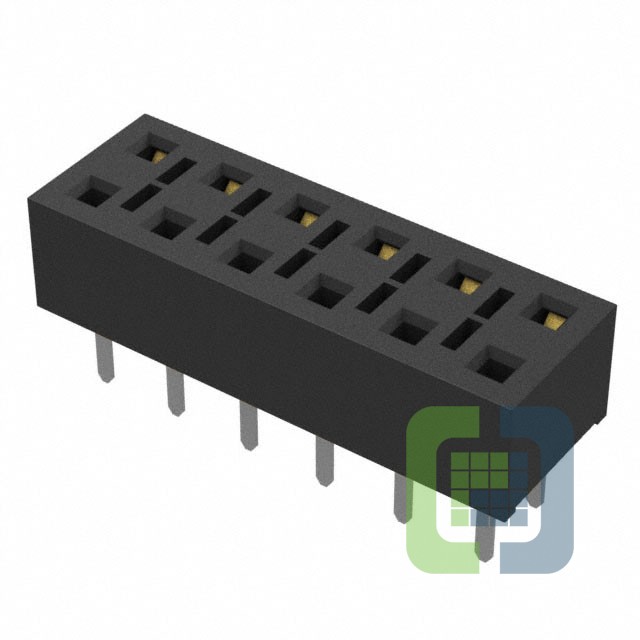

HLE-106-02-L-DV-TE Gallery image caption
In Stock: 189

Can ship immediately

Pricing:
  • 1$2.59
  • 10$2.14716
  • 100$1.61068
  • 500$1.34222
  • 1,000$1.19011
  • 5,000$1.11853

Quote It

Technical Details

  • Series:HLE
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:12
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Insulation Color:Black
  • Insulation Height:0.138" (3.50mm)
  • Contact Length - Post:0.120" (3.05mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:-
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):4.1A per Contact
  • Voltage Rating:400VAC
