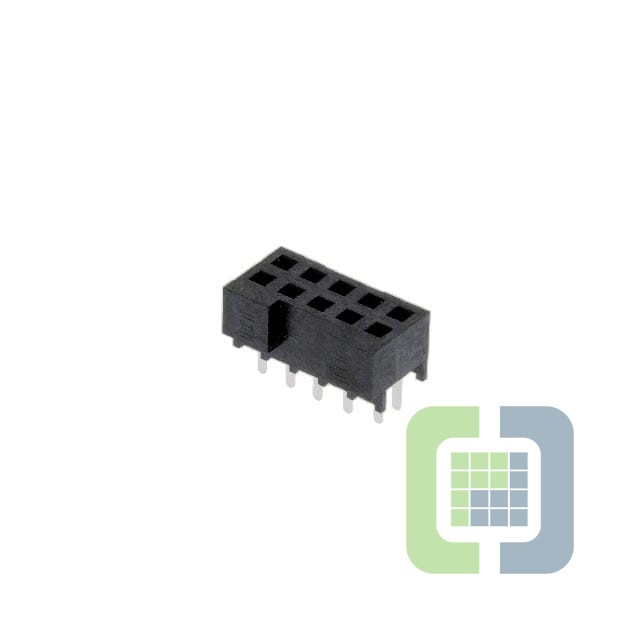

S2M-105-01-L-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 10POS 0.079 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet S2M-105-01-L-D Datasheet
-
ECAD Model
- Share
In Stock: 244
Can ship immediately
Pricing:
- 1$3.74
- 10$3.16091
- 100$2.44251
- 500$2.01148
- 1,000$1.86781
- 5,000$1.76004
Quote It
Technical Details
- Series:Tiger Eye™ S2M
- Package:Tube
- Part Status:Active
- Connector Type:Socket
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:10
- Number of Positions Loaded:All
- Pitch - Mating:0.079" (2.00mm)
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.178" (4.51mm)
- Contact Length - Post:0.082" (2.08mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:-
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):2.6A per Contact
- Voltage Rating:-
