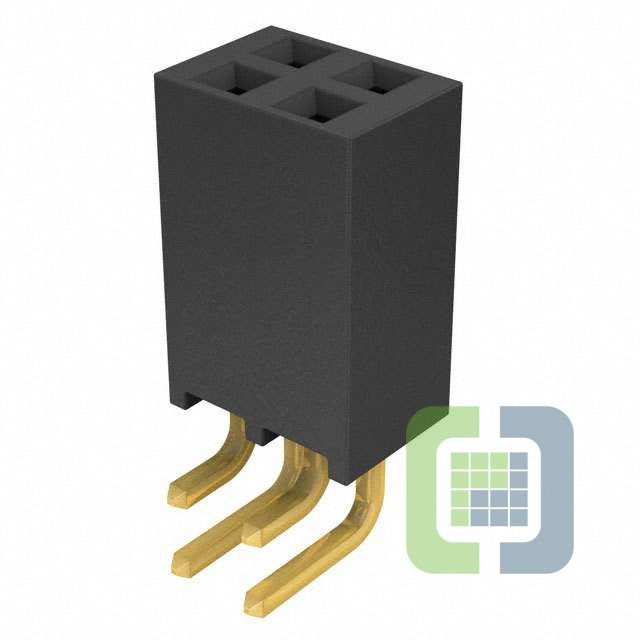

SSQ-102-02-G-D-RA
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 4POS 0.1 GOLD PCB R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SSQ-102-02-G-D-RA Datasheet
-
ECAD Model
- Share
In Stock: 1,102
Can ship immediately
Pricing:
- 1$0.87
- 10$0.76292
- 25$0.71831
- 50$0.68842
- 100$0.65841
- 250$0.59856
- 500$0.53871
Quote It
Technical Details
- Series:SSQ
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:4
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:20.0µin (0.51µm)
- Insulation Color:Black
- Insulation Height:0.195" (4.95mm)
- Contact Length - Post:0.100" (2.54mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):6.3A per Contact
- Voltage Rating:550VAC
