MLE-107-01-G-DV-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

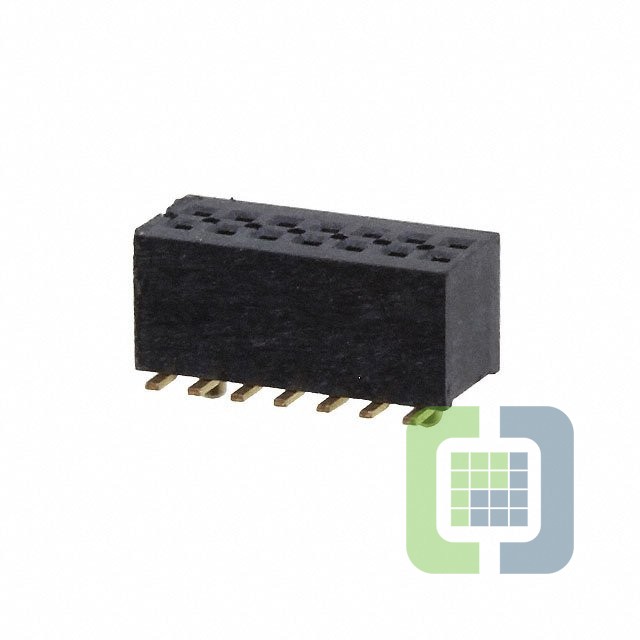

- DescriptionCONN RCPT 14POS 0.039 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet MLE-107-01-G-DV-A Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$3
- 81$2.19231
- 162$1.96154
- 567$1.61539
- 1,053$1.5
- 5,022$1.41346
Quote It
Technical Details
- Series:MLE
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:14
- Number of Positions Loaded:All
- Pitch - Mating:0.039" (1.00mm)
- Number of Rows:2
- Row Spacing - Mating:0.039" (1.00mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.130" (3.30mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:-
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Guide
- Current Rating (Amps):2.9A per Contact
- Voltage Rating:310VAC
