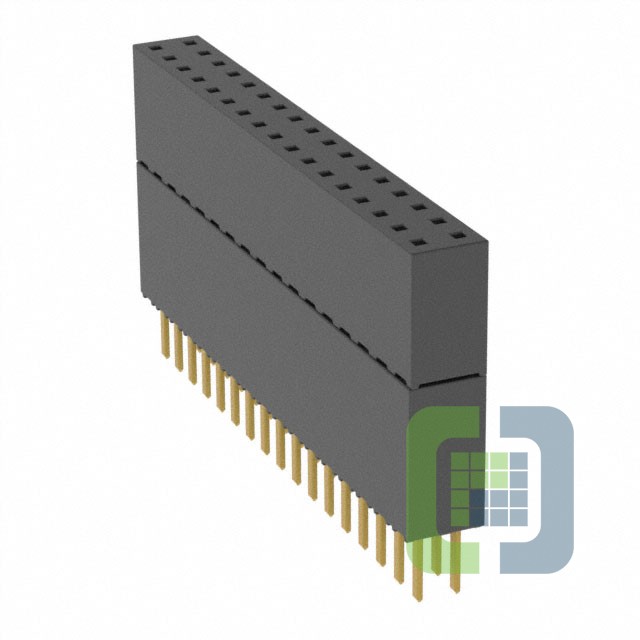

ESW-117-44-G-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 34POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet ESW-117-44-G-D Datasheet
-
ECAD Model
- Share
In Stock: 201
Can ship immediately
Pricing:
- 1$8.64
- 10$7.88457
- 100$6.00728
- 500$5.06865
- 1,000$4.78705
Quote It
Technical Details
- Series:ESW
- Package:Tube
- Part Status:Active
- Connector Type:Elevated Socket
- Contact Type:Forked
- Style:Board to Board
- Number of Positions:34
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:20.0µin (0.51µm)
- Insulation Color:Black
- Insulation Height:0.735" (18.67mm)
- Contact Length - Post:0.180" (4.57mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):5.2A per Contact
- Voltage Rating:550VAC
