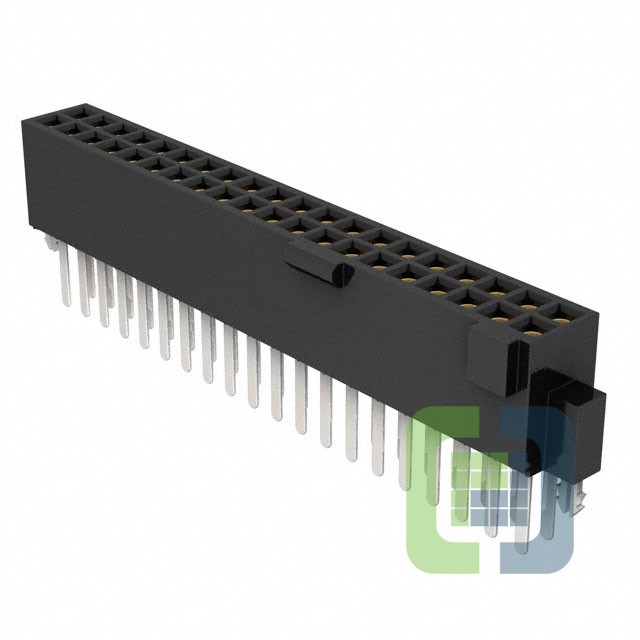

SFML-120-T2-S-D-LC
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 40POS 0.05 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SFML-120-T2-S-D-LC Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
- 1$9.55
- 10$8.83442
- 100$7.40125
- 500$6.2075
- 1,000$5.96875
Quote It
Technical Details
- Series:Tiger Eye™ SFML
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:40
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.185" (4.70mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Lock
- Current Rating (Amps):3.2A per Contact
- Voltage Rating:250VAC
