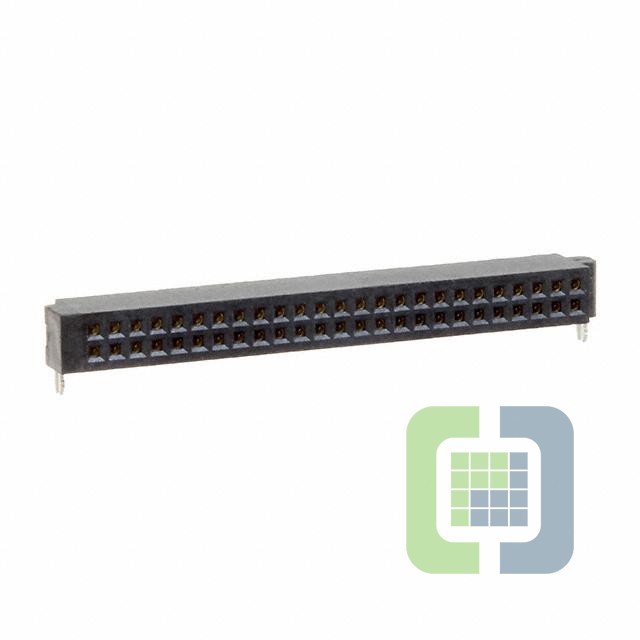

SFMH-125-02-L-D-LC
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 50P 0.05 GOLD SMD R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SFMH-125-02-L-D-LC Datasheet
-
ECAD Model
- Share
In Stock: 351
Can ship immediately
Pricing:
- 1$13.91
- 16$13.09491
- 112$11.45775
- 512$10.43471
- 1,008$10.0255
Quote It
Technical Details
- Series:Tiger Eye™ SFMH
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:50
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.135" (3.43mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Lock
- Current Rating (Amps):-
- Voltage Rating:-
