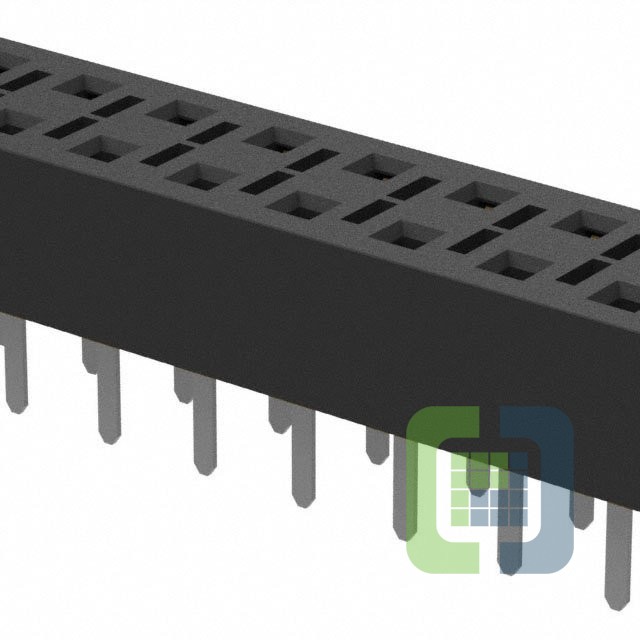

HLE-110-02-F-DV-TE
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 20POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$3.26
Quote It
Technical Details
- Series:HLE
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:20
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.00µin (0.076µm)
- Insulation Color:Black
- Insulation Height:0.138" (3.50mm)
- Contact Length - Post:0.120" (3.05mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):4.1A per Contact
- Voltage Rating:400VAC
