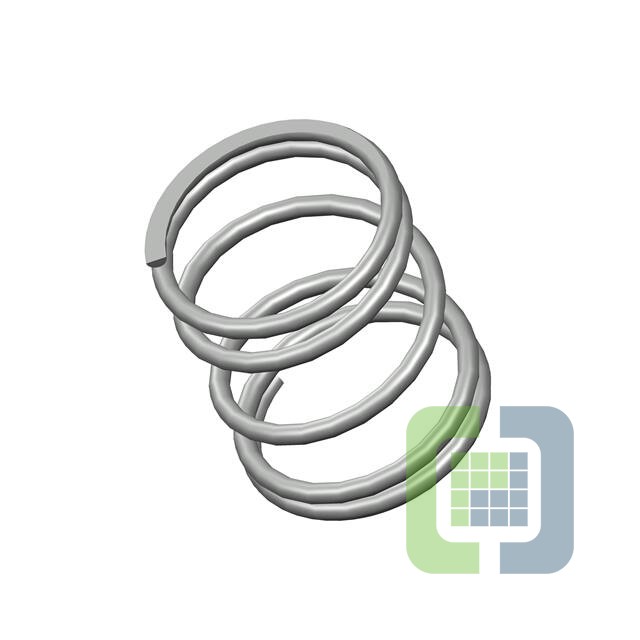

2845CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .687,L= .81,W= .055
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 964
Can ship immediately
Pricing:
- 1$3.17
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.055" (1.40mm)
- Diameter - Outside:0.687" (17.45mm)
- Diameter - Inside:0.577" (14.66mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.810" (20.57mm)
- Max Load:-
- Rate:17.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
