3542CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

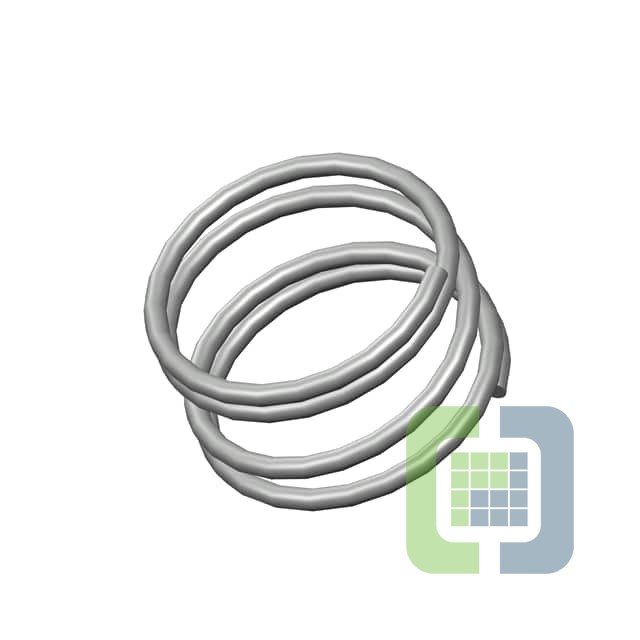

- DescriptionCOMP O= .906,L= .59,W= .063
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,759
Can ship immediately
Pricing:
- 1$4.1
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.063" (1.60mm)
- Diameter - Outside:0.906" (23.01mm)
- Diameter - Inside:0.780" (19.81mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.590" (14.99mm)
- Max Load:22.0 lbs
- Rate:19.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
