3237CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.234,L= .84,W= .076

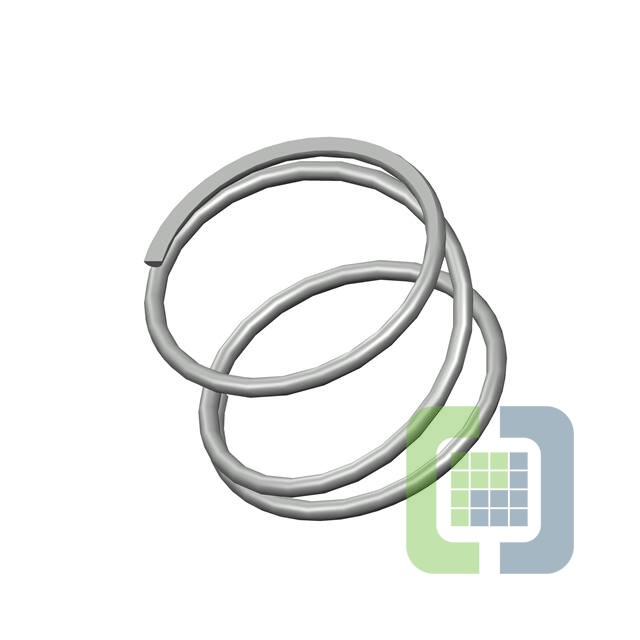

- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 492
Can ship immediately
Pricing:
- 1$4.47
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.076" (1.93mm)
- Diameter - Outside:1.234" (31.34mm)
- Diameter - Inside:1.082" (27.48mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.840" (21.34mm)
- Max Load:-
- Rate:31.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
