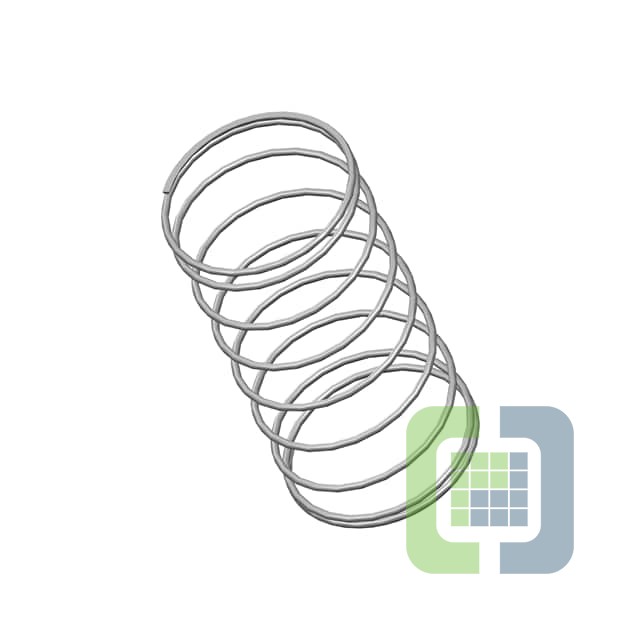

B18-194CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.219,L= 2.44,W= .045
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 328
Can ship immediately
Pricing:
- 1$4.47
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.045" (1.14mm)
- Diameter - Outside:1.219" (30.96mm)
- Diameter - Inside:1.129" (28.68mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.440" (61.98mm)
- Max Load:-
- Rate:0.52 lbs/in
- End Style:Closed & Ground
- Finish:None
