3801CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .812,L= 1.69,W= .105

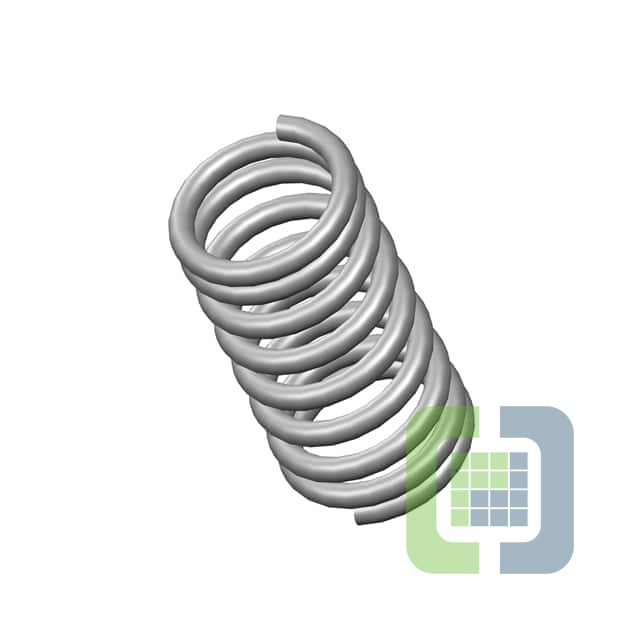

- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 338
Can ship immediately
Pricing:
- 1$4.47
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.105" (2.67mm)
- Diameter - Outside:0.812" (20.62mm)
- Diameter - Inside:0.602" (15.29mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.690" (42.93mm)
- Max Load:-
- Rate:76.0 lbs/in
- End Style:Closed & Ground
- Finish:Gold Iridite
