EE-12CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

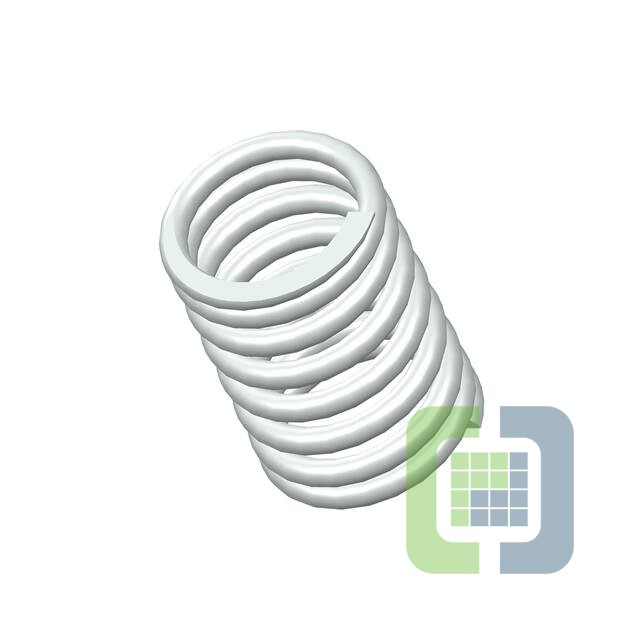

- DescriptionCOMP O= .219,L= .38,W= .030
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 4,022
Can ship immediately
Pricing:
- 1$4.9
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.030" (0.76mm)
- Diameter - Outside:0.219" (5.56mm)
- Diameter - Inside:0.159" (4.04mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.380" (9.65mm)
- Max Load:-
- Rate:25.0 lbs/in
- End Style:Closed & Ground
- Finish:None
