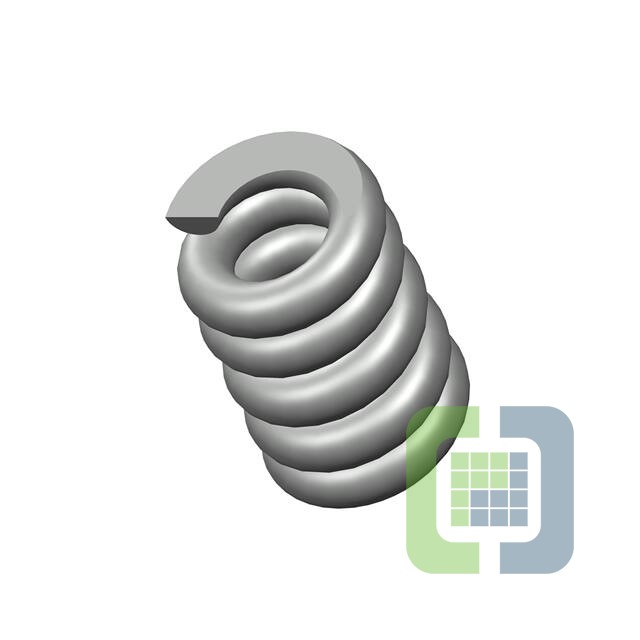

J-12CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .281,L= .41,W= .071
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 298
Can ship immediately
Pricing:
- 1$5.69
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.071" (1.80mm)
- Diameter - Outside:0.281" (7.14mm)
- Diameter - Inside:0.139" (3.53mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.410" (10.41mm)
- Max Load:-
- Rate:1315.0 lbs/in
- End Style:Closed & Ground
- Finish:None
