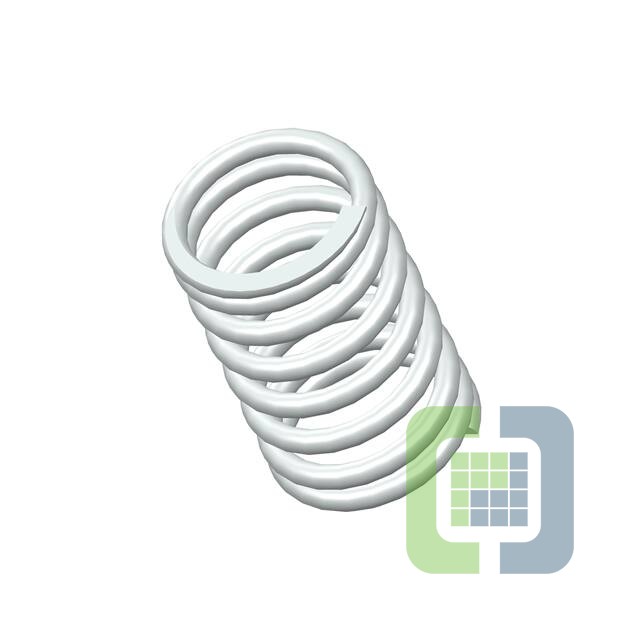

S-1196CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .906,L= 1.50,W= .105
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 403
Can ship immediately
Pricing:
- 1$5.73
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.105" (2.67mm)
- Diameter - Outside:0.906" (23.01mm)
- Diameter - Inside:0.696" (17.68mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.500" (38.10mm)
- Max Load:-
- Rate:49.0 lbs/in
- End Style:Closed & Ground
- Finish:None
