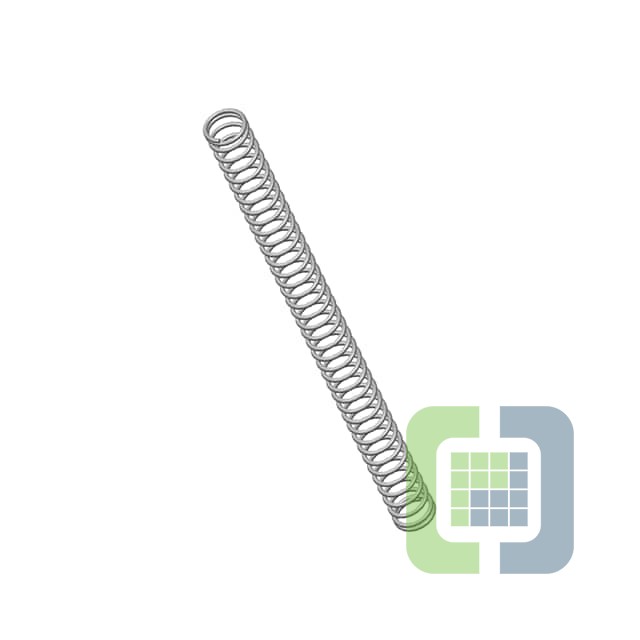

3961CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .687,L= 9.50,W= .072
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 354
Can ship immediately
Pricing:
- 1$5.73
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.072" (1.83mm)
- Diameter - Outside:0.687" (17.45mm)
- Diameter - Inside:0.543" (13.79mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:9.500" (241.30mm)
- Max Load:-
- Rate:4.4 lbs/in
- End Style:Closed
- Finish:Zinc
