S-1249CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

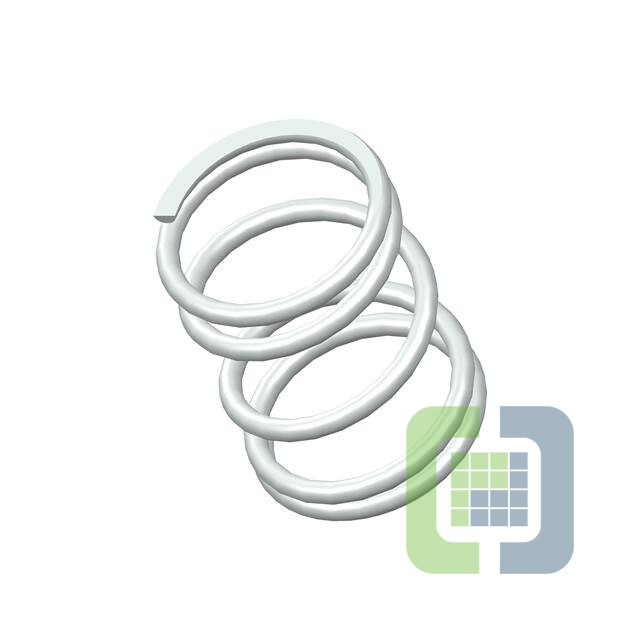

- DescriptionCOMP O=1.125,L= 1.50,W= .105
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 227
Can ship immediately
Pricing:
- 1$6.45
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.105" (2.67mm)
- Diameter - Outside:1.125" (28.58mm)
- Diameter - Inside:0.915" (23.24mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.500" (38.10mm)
- Max Load:-
- Rate:48.0 lbs/in
- End Style:Closed & Ground
- Finish:None
