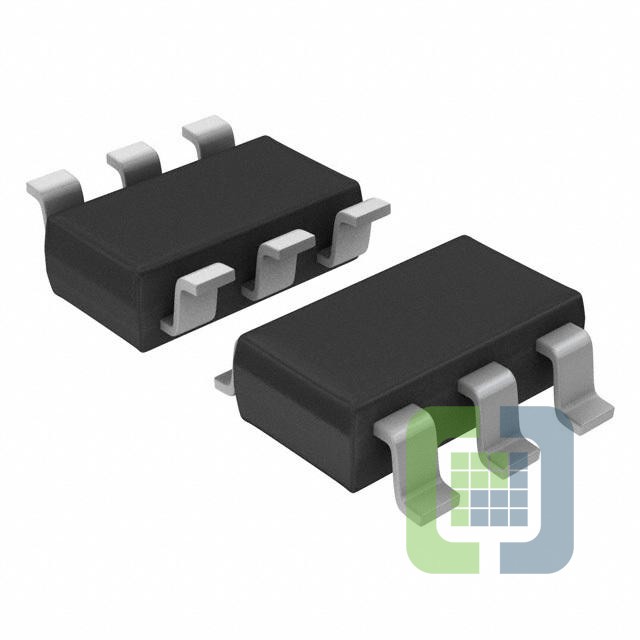

NCP12510CSN65T1G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCURRENT-MODE PWM CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet NCP12510CSN65T1G Datasheet
-
ECAD Model
- Share
In Stock: 180,130
Can ship immediately
Pricing:
- 1$0.18
- 3,000$0.18
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:PWM
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Flyback
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):5V ~ 20V
- Frequency - Switching:65kHz
- Duty Cycle (Max):84%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Sense
- Operating Temperature:150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package:6-TSOP
