ADP1851ACPZ-R7
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionWIDE RANGE INPUT, SYNCHRONOUS, S
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ADP1851ACPZ-R7 Datasheet
-
ECAD Model
- Share
In Stock: 7,717
Can ship immediately
Pricing:
- 1$1.4
- 1,500$1.4
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.75V ~ 20V
- Frequency - Switching:200kHz ~ 1.5MHz
- Duty Cycle (Max):90%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Ramp, Soft Start, Tracking
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

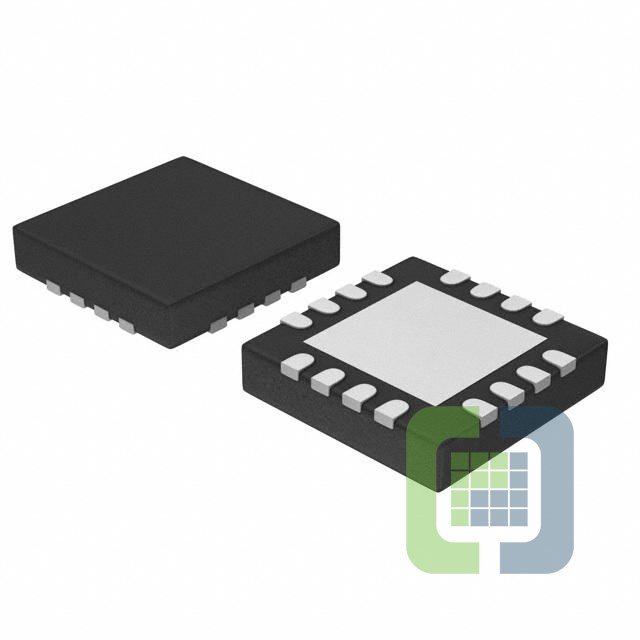

- Package / Case:16-WQFN Exposed Pad, CSP
- Supplier Device Package:16-LFCSP-WQ (4x4)
