UCC28231DRNT
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUCC28231 ADVANCED PWM CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 4,096
Can ship immediately
Pricing:
- 1$1.8
- 250$1.8
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Full-Bridge, Half-Bridge, Push-Pull
- Number of Outputs:4
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7V ~ 17V
- Frequency - Switching:100kHz ~ 550kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Frequency Control, Soft Start
- Operating Temperature:-55°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

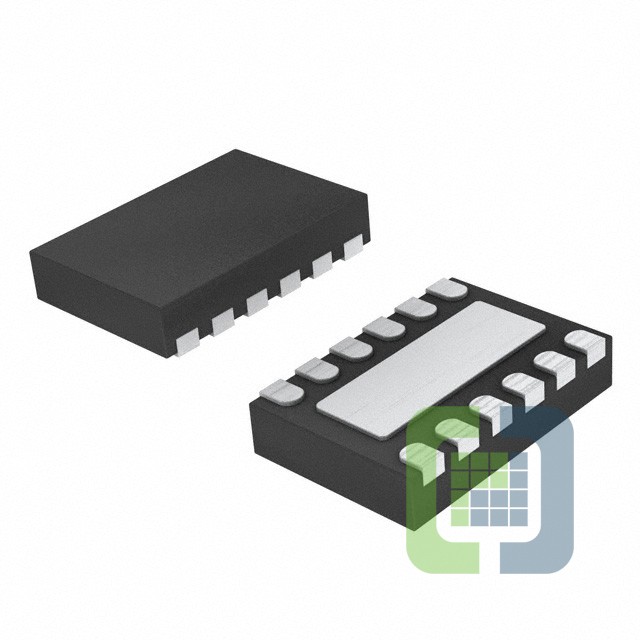

- Package / Case:12-UFDFN Exposed Pad
- Supplier Device Package:12-USON (3x2)
