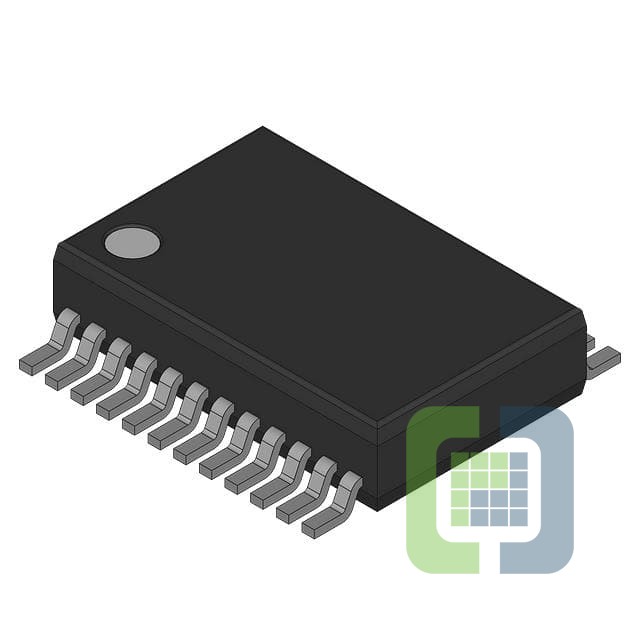

ADP1822ARQZ-R7
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionPWM, STEP-DOWN DC-TO-DC CONTROLL
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ADP1822ARQZ-R7 Datasheet
-
ECAD Model
- Share
In Stock: 9,610
Can ship immediately
Pricing:
- 1$2
- 1,000$2
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.7V ~ 5.5V
- Frequency - Switching:310kHz, 570kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Margining, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:24-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:24-QSOP
