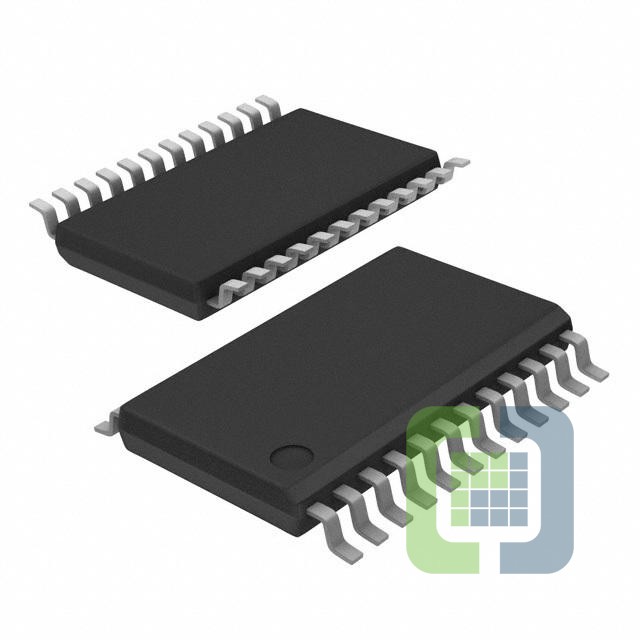

TPS53126PW
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS53126 4.5 V TO 24 V INPUT, SE
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 9,093
Can ship immediately
Pricing:
- 1$2.5
- 180$2.5
Quote It
Technical Details
- Series:D-CAP2™
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 24V
- Frequency - Switching:350kHz, 700kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:24-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:24-TSSOP
