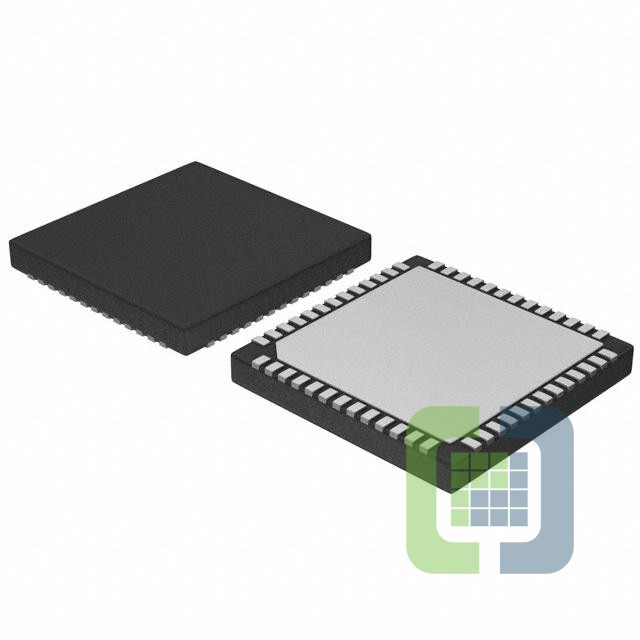

NCP81233MNTXG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionNCP81233 - MULTI-PHASE CONTROLLE
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet NCP81233MNTXG Datasheet
-
ECAD Model
- Share
In Stock: 1,624
Can ship immediately
Pricing:
- 1$2.8
- 2,500$2.8
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Up, Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost
- Number of Outputs:1
- Output Phases:4
- Voltage - Supply (Vcc/Vdd):4.5V ~ 20V
- Frequency - Switching:200kHz ~ 1.2MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:-
- Clock Sync:Yes
- Serial Interfaces:I²C
- Control Features:Current Limit, Enable, Frequency Control, On Time Control, Ramp, Soft Start
- Operating Temperature:-40°C ~ 100°C (TA)
- Mounting Type:Surface Mount
- Package / Case:52-VFQFN Exposed Pad
- Supplier Device Package:52-QFN (6x6)
