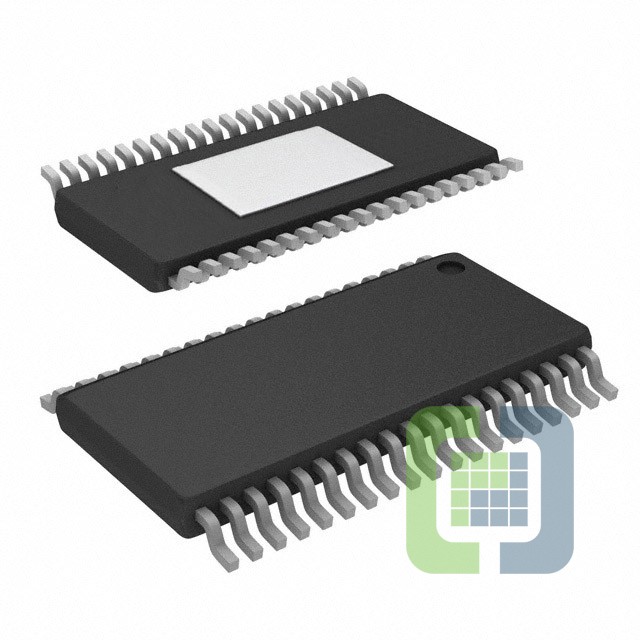

TPS43336QDAPRQ1
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS43336-Q1 AUTOMOTIVE 2V TO 40V
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 4,151
Can ship immediately
Pricing:
- 1$3.3
- 2,000$2.9659
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost
- Number of Outputs:3
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4V ~ 40V
- Frequency - Switching:150kHz ~ 600kHz
- Duty Cycle (Max):90%, 98.75%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:38-PowerTSSOP (0.240", 6.10mm Width)
- Supplier Device Package:38-HTSSOP
