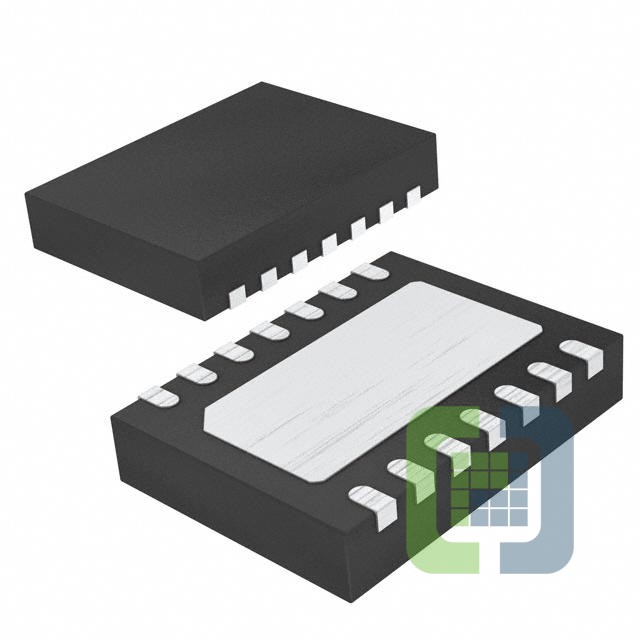

LTC3808EDE#PBF
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLTC3808 - NO RSENSE, LOW EMI, SY
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3808EDE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 354
Can ship immediately
Pricing:
- 1$3.43
- 273$3.4181
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.75V ~ 9.8V
- Frequency - Switching:250kHz ~ 750kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:14-WFDFN Exposed Pad
- Supplier Device Package:14-DFN (4x3)
