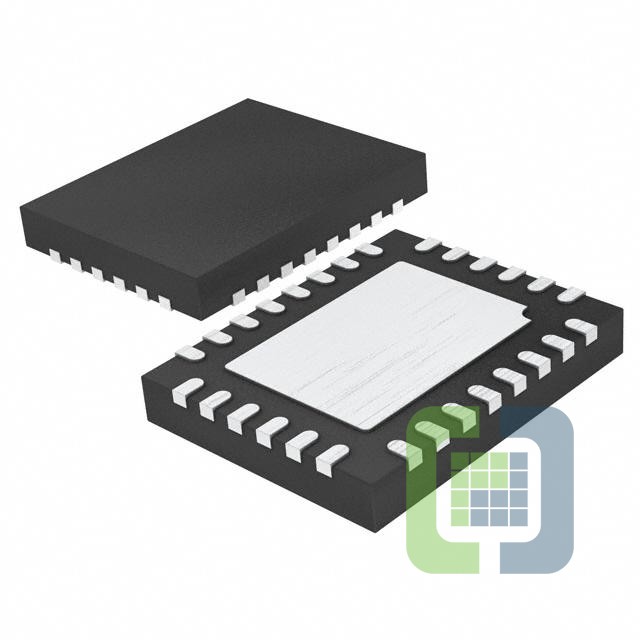

LT8390AHUFD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- Description60V SYNCHRONOUS 4-SWITCH BUCK-BO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LT8390AHUFD#PBF Datasheet
-
ECAD Model
- Share
In Stock: 238
Can ship immediately
Pricing:
- 1$11.42
- 25$7.57986
- 100$6.2674
- 250$5.95403
- 500$5.81973
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4V ~ 60V
- Frequency - Switching:645kHz ~ 2.1MHz
- Duty Cycle (Max):95%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:28-WFQFN Exposed Pad
- Supplier Device Package:28-QFN (4x5)
