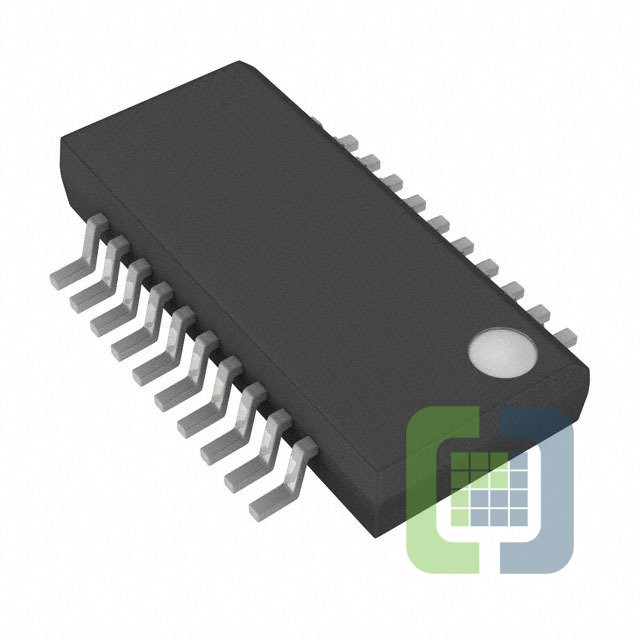

MAX8544EEP+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 20QSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX8544EEP+ Datasheet
-
ECAD Model
- Share
In Stock: 799,124
Can ship immediately
Pricing:
- 1$3.41
- 10$3.2395
- 25$2.36138
- 50$2.2434
- 100$1.58653
- 250$1.56152
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3V ~ 13.2V
- Frequency - Switching:800kHz ~ 1.2MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Power Good, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:20-QSOP
