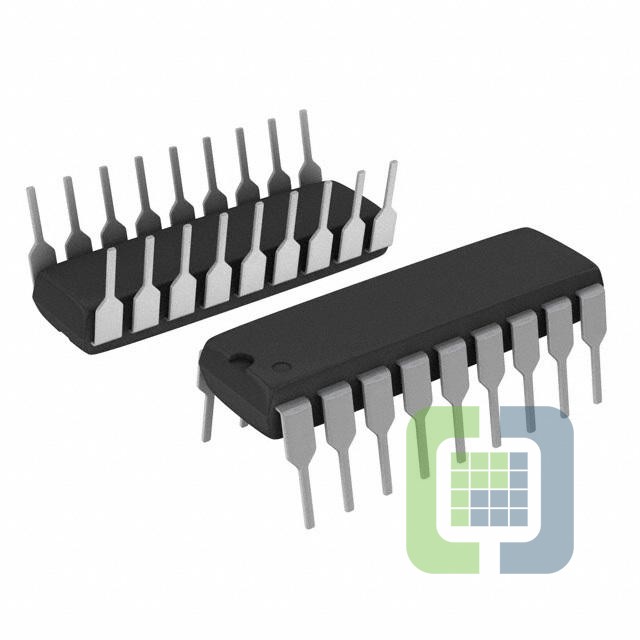

UC3841N
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOPOLOGY 18DIP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$16.88
- 20$15.51201
- 40$14.86908
- 100$13.10091
- 500$11.65415
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Boost, Flyback, Forward Converter
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 32V
- Frequency - Switching:500kHz
- Duty Cycle (Max):95%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Ramp, Reset, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Through Hole
- Package / Case:18-DIP (0.300", 7.62mm)
- Supplier Device Package:18-PDIP
