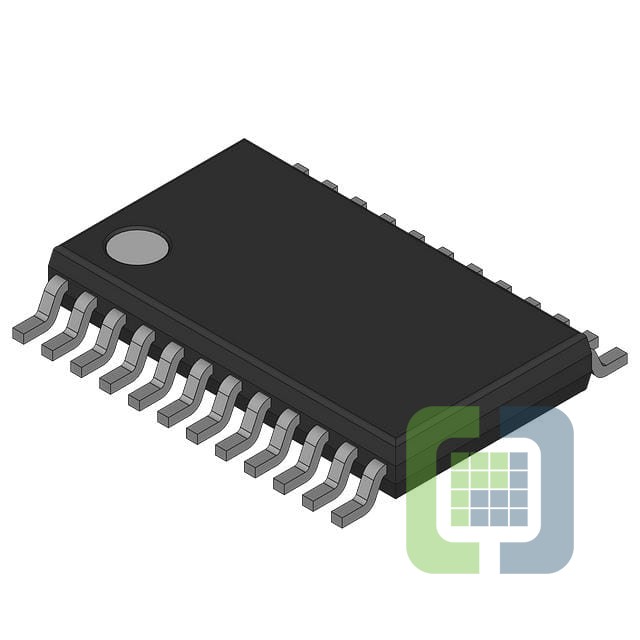

MB39A136PFT-G-BND-JNE1
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- Description2 CHANNEL PFM/PWM DC/DC CONVERTE
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 211
Can ship immediately
Pricing:
- 1$1.59
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 25V
- Frequency - Switching:500kHz
- Duty Cycle (Max):80%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Soft Start
- Operating Temperature:-30°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:24-TFSOP (0.173", 4.40mm Width)
- Supplier Device Package:24-TSSOP
