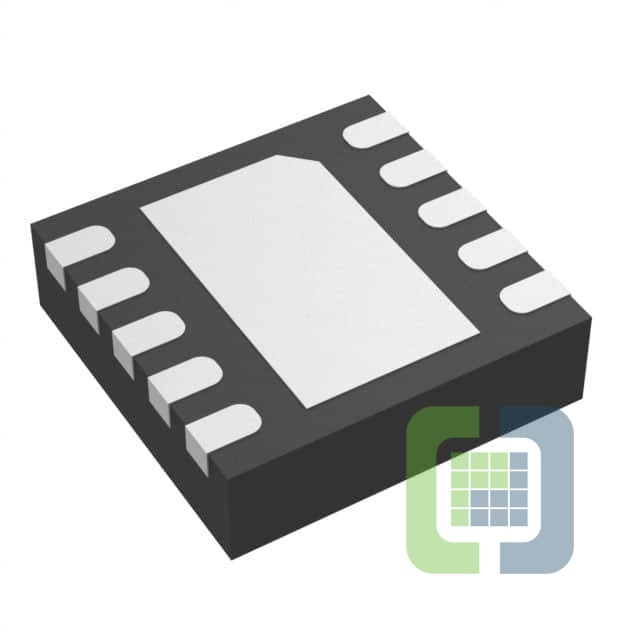

TPS40345DRCT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDC/DC CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 423
Can ship immediately
Pricing:
- 1$2.37
- 250$1.55596
- 500$1.36622
- 1,250$1.1385
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:PWM
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3V ~ 20V
- Frequency - Switching:600kHz
- Duty Cycle (Max):90%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Power Good, Soft Start
- Operating Temperature:-20°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:10-VFDFN Exposed Pad
- Supplier Device Package:10-VSON (3x3)
