MAX15005CAUE/V+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionAUTOMOTIVE BOOST/FLYBACK/SEPIC P
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 1,097
Can ship immediately
Pricing:
- 1$2.33
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, Flyback, SEPIC
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 40V
- Frequency - Switching:15kHz ~ 1MHz
- Duty Cycle (Max):80%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

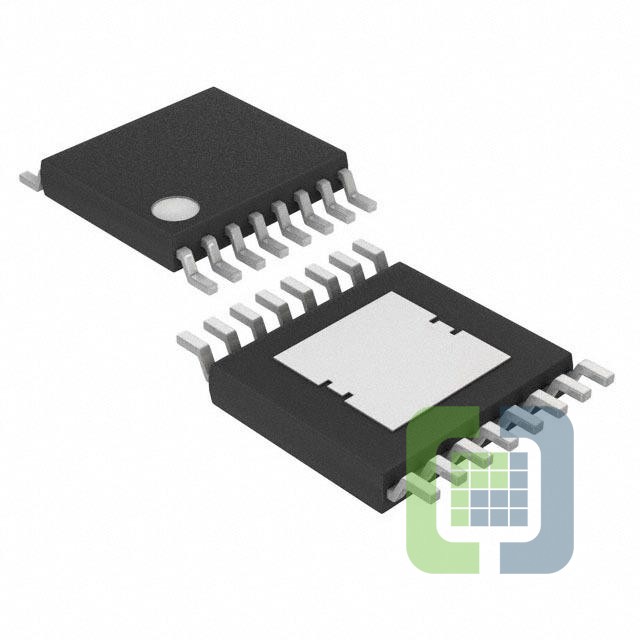

- Package / Case:16-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package:16-TSSOP-EP
