TLE83862ELXUMA1
IR (Infineon Technologies)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BOOST 14-SSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet TLE83862ELXUMA1 Datasheet
-
ECAD Model
- Share
In Stock: 849
Can ship immediately
Pricing:
- 1$2.04
- 2,500$0.89124
- 5,000$0.88023
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up
- Output Configuration:Positive
- Topology:Boost
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.75V ~ 45V
- Frequency - Switching:100kHz ~ 700kHz
- Duty Cycle (Max):93%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

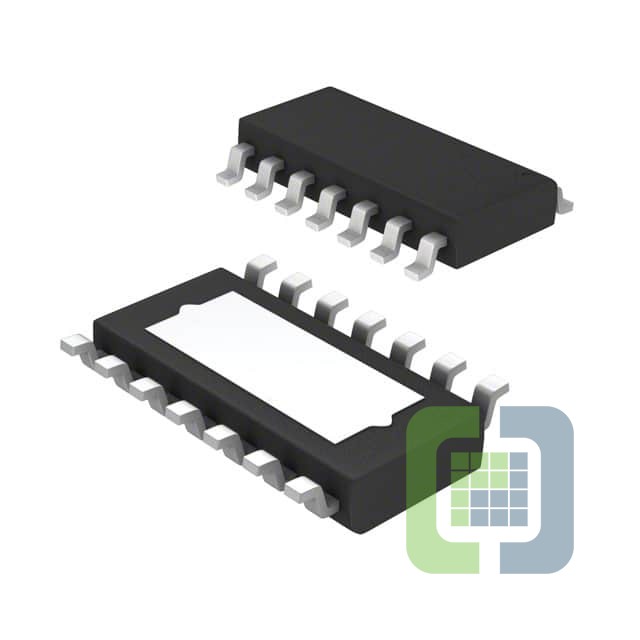

- Package / Case:14-LSSOP (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:14-SSOP
