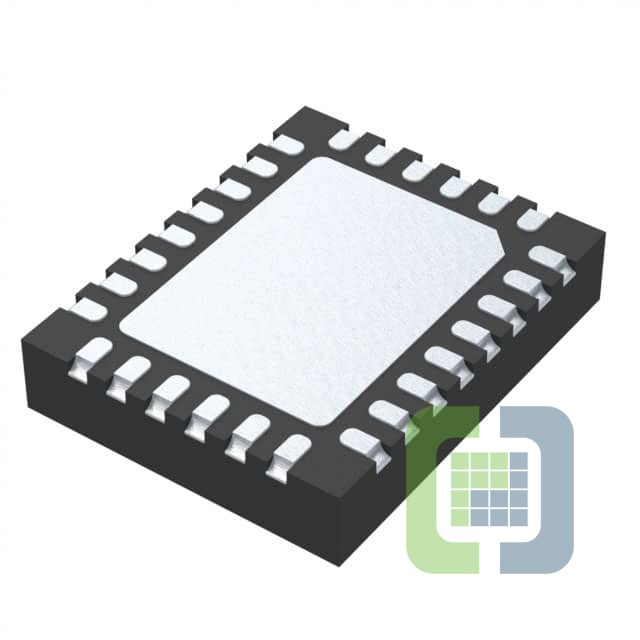

LTC7802EUFDM#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- Description40V, LOW IQ DUAL PHSE SYCH STP-D
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 121
Can ship immediately
Pricing:
- 1$5.7
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 40V
- Frequency - Switching:100kHz ~ 3MHz
- Duty Cycle (Max):99%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount, Wettable Flank
- Package / Case:28-WFQFN Exposed Pad
- Supplier Device Package:28-QFN (4x5)
