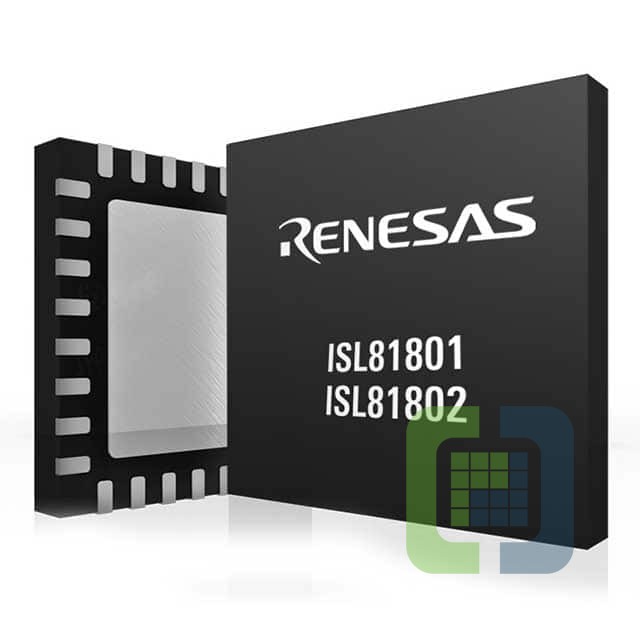

ISL81801FRTZ-T7A
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- Description80V BI-DIRECTIONAL BUCK-BOOST CO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 380
Can ship immediately
Pricing:
- 1$11.33
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Number of Outputs:4
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 80V
- Frequency - Switching:100kHz ~ 600kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Off Time Control, On Time Control, Phase Control, Power Good, Power On Reset, Pulse Skipping, Ramp, Sequencing, Soft Star, Tracking
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:32-WFQFN Exposed Pad
- Supplier Device Package:32-TQFN (5x5)
