NCP1031AMNTXG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionANA BIAS REGULATOR CNTRLR
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 152
Can ship immediately
Pricing:
- 1$1.11
- 4,000$1.08745
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Last Time Buy
- Output Type:PWM
- Function:Step-Up
- Output Configuration:Positive
- Topology:Boost
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 16V
- Frequency - Switching:300kHz ~ 800kHz
- Duty Cycle (Max):80%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Over/Under Voltage Shutdown
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

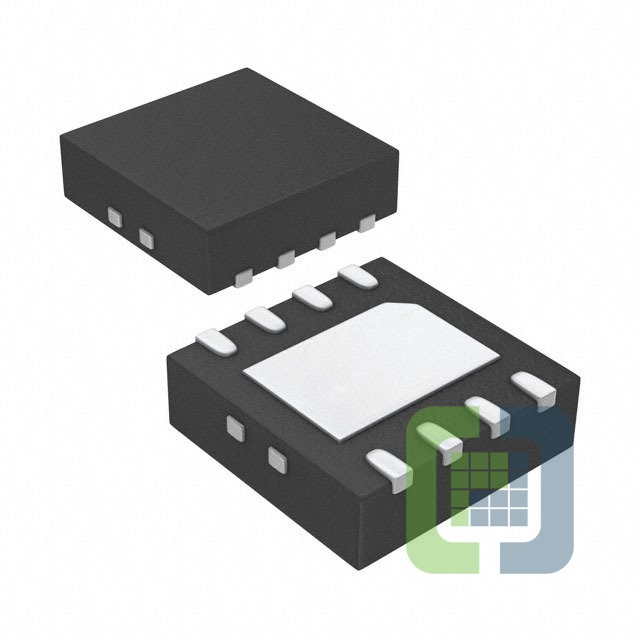

- Package / Case:8-VDFN Exposed Pad
- Supplier Device Package:8-DFN (4x4)
