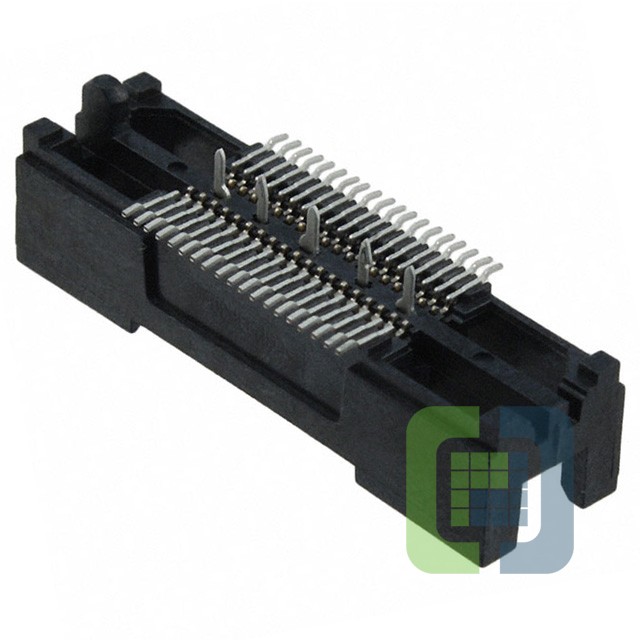

2-5767004-2
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 38POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 2-5767004-2 Datasheet
-
ECAD Model
- Share
In Stock: 4,755
Can ship immediately
Pricing:
- 1$16.36
- 21$14.86968
- 42$14.4979
- 63$13.38257
- 105$12.63917
- 252$11.52392
- 504$10.78043
- 1,008$9.88826
Quote It
Technical Details
- Series:MICTOR
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:38
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
- Height Above Board:0.236" (6.00mm)
