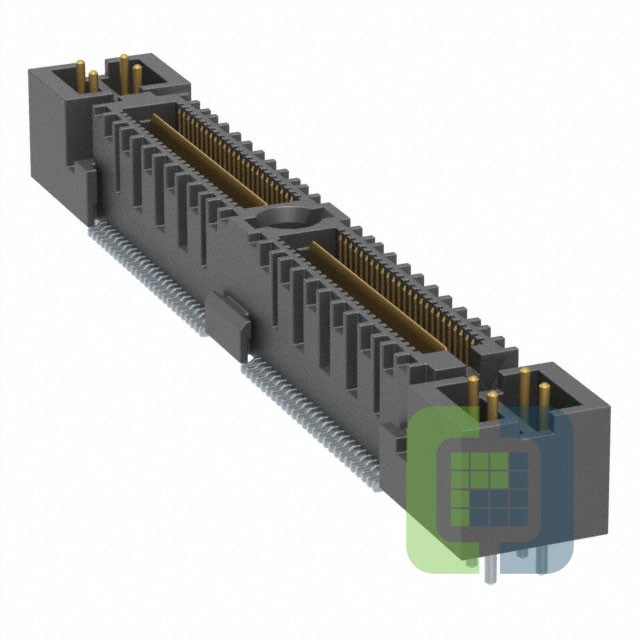

QMS-052-06.75-L-D-PC4
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 104POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QMS-052-06.75-L-D-PC4 Datasheet
-
ECAD Model
- Share
In Stock: 261
Can ship immediately
Pricing:
- 1$19.28
- 10$18.63095
- 28$17.98801
- 56$17.34544
- 112$16.70298
- 252$16.38175
- 504$16.06053
Quote It
Technical Details
- Series:Power Q2™ QMS
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:104
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Through Hole
- Features:Board Guide, Ground Bus (Plane), Power Pins (8)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:11mm, 13mm
- Height Above Board:0.265" (6.73mm)
