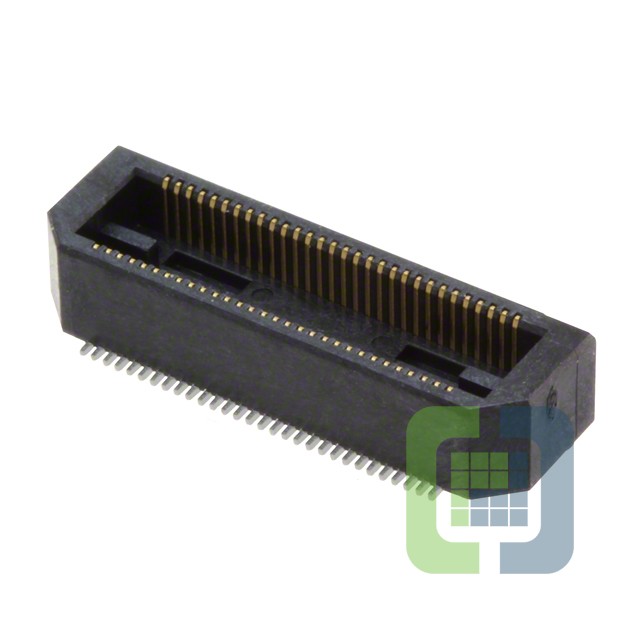

BTH-030-01-L-D-A-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 60POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet BTH-030-01-L-D-A-K Datasheet
-
ECAD Model
- Share
In Stock: 2,366
Can ship immediately
Pricing:
- 1$7.88
- 10$7.19677
- 25$6.85407
- 96$6.16865
- 192$5.48327
- 288$4.96919
- 576$4.62649
- 1,056$4.36947
- 2,592$4.19812
Quote It
Technical Details
- Series:BTH
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:60
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.168" (4.27mm)
