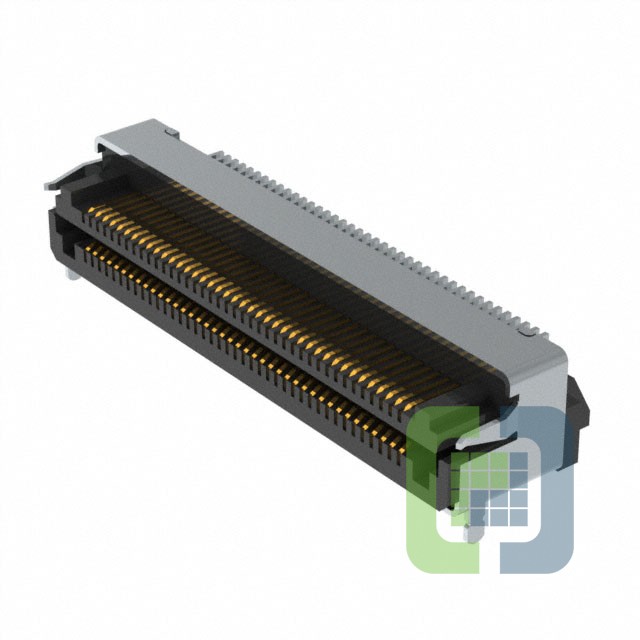

LSHM-140-01-F-DH-A-S-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 80P R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 1,001
Can ship immediately
Pricing:
- 1$11.18
- 375$6.604
- 750$6.35
- 1,125$6.223
Quote It
Technical Details
- Series:Razor Beam™ LSHM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:80
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Board Guide, Pick and Place, Shielded
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:-
- Height Above Board:0.202" (5.13mm)
