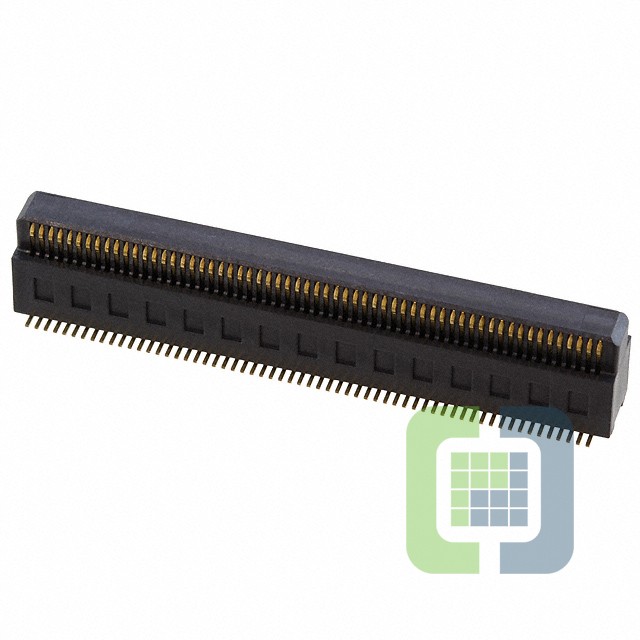

WR-120S-VFH30-N1
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WR-120S-VFH30-N1 Datasheet
-
ECAD Model
- Share
In Stock: 252
Can ship immediately
Pricing:
- 1$10.53
- 10$10.076
- 25$9.16
- 50$8.702
- 100$8.473
- 250$7.557
- 500$7.099
- 1,000$6.2746
Quote It
Technical Details
- Series:WR
- Package:Strip
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:7mm, 8mm, 9mm
- Height Above Board:0.246" (6.25mm)
