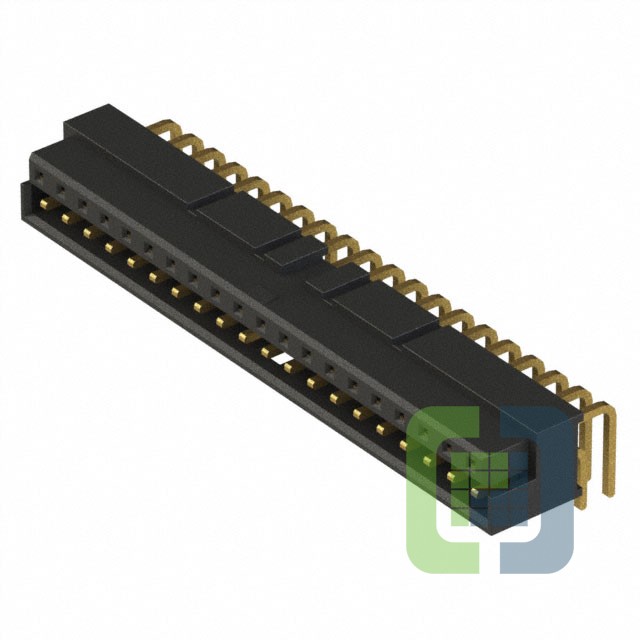

LS2-120-01-L-D-RA1
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 40POS R/A GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LS2-120-01-L-D-RA1 Datasheet
-
ECAD Model
- Share
In Stock: 709
Can ship immediately
Pricing:
- 1$10.5
- 13$10.04792
- 104$8.44923
- 507$7.0791
- 1,001$6.25701
Quote It
Technical Details
- Series:LS2
- Package:Tube
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:40
- Pitch:0.079" (2.00mm)
- Number of Rows:2
- Mounting Type:Through Hole, Right Angle
- Features:Latch Holder
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:-
- Height Above Board:0.208" (5.28mm)
