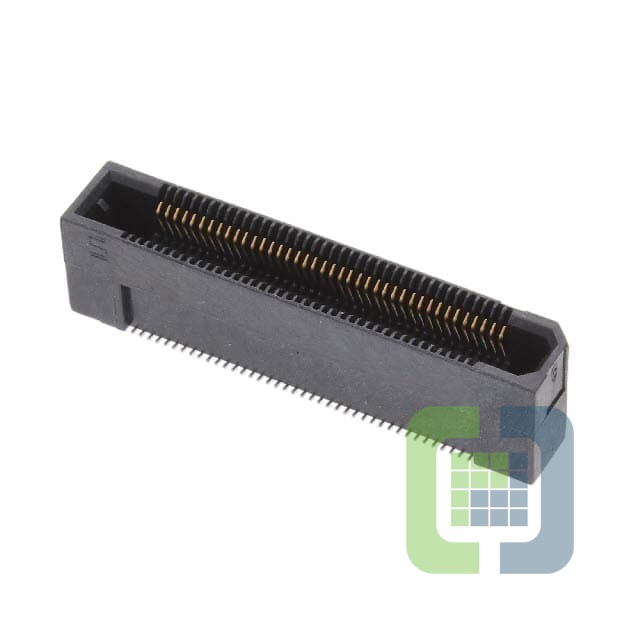

ERF5-040-07.0-L-DV-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 248
Can ship immediately
Pricing:
- 1$7.75
- 325$5.49102
- 650$5.168
- 975$4.84501
- 1,625$4.4251
Quote It
Technical Details
- Series:Edge Rate™ ERF5
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Socket, Center Strip Contacts
- Number of Positions:80
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:9mm, 11mm, 12mm
- Height Above Board:0.272" (6.90mm)
