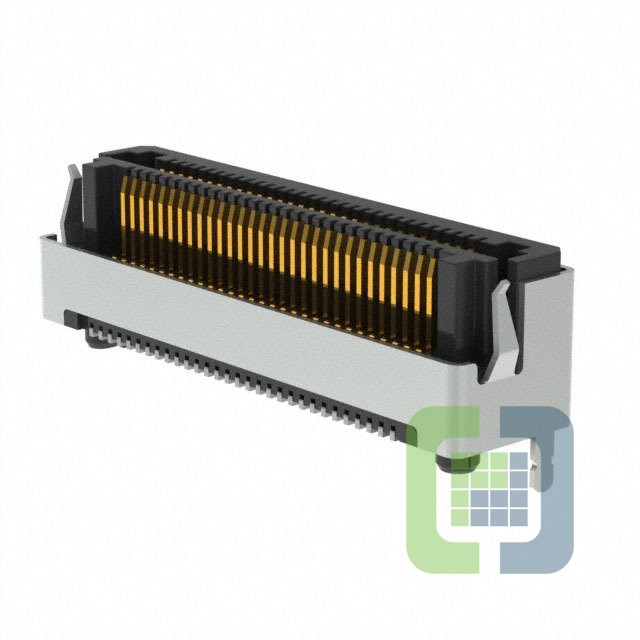

LSHM-130-04.0-L-DV-A-S-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 60POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSHM-130-04.0-L-DV-A-S-TR Datasheet
-
ECAD Model
- Share
In Stock: 240
Can ship immediately
Pricing:
- 1$8.1
- 475$4.752
- 950$4.488
- 1,425$4.4
Quote It
Technical Details
- Series:Razor Beam™ LSHM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:60
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Shielded
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:6.5mm, 7mm, 8mm, 10mm
- Height Above Board:0.215" (5.46mm)
