0543630878
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

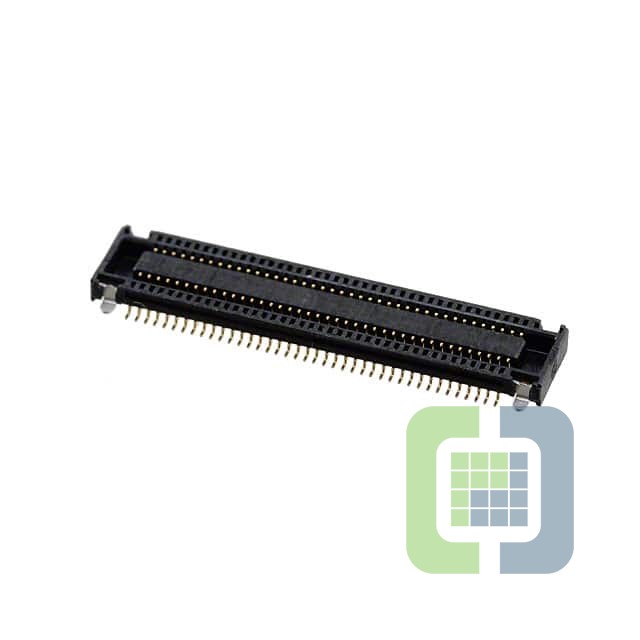

- DescriptionCONN RCPT 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0543630878 Datasheet
-
ECAD Model
- Share
In Stock: 2,299
Can ship immediately
Pricing:
- 1$8.24
- 2,500$4.6579
Quote It
Technical Details
- Series:SlimStack 54363
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:80
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:2mm, 3mm
- Height Above Board:0.059" (1.50mm)
