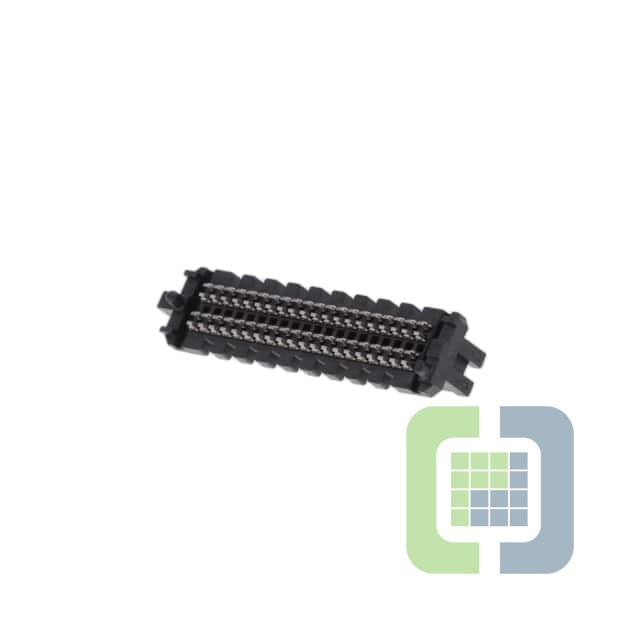

SEAM-20-02.0-S-04-1-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY PLUG 80P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAM-20-02.0-S-04-1-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 331
Can ship immediately
Pricing:
- 1$12.67
- 350$7.488
- 700$7.344
- 1,050$7.056
Quote It
Technical Details
- Series:SEARAY™ SEAM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Male
- Number of Positions:80
- Pitch:0.050" (1.27mm)
- Number of Rows:4
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:7mm, 8mm, 8.5mm, 9.5mm
- Height Above Board:0.181" (4.60mm)
