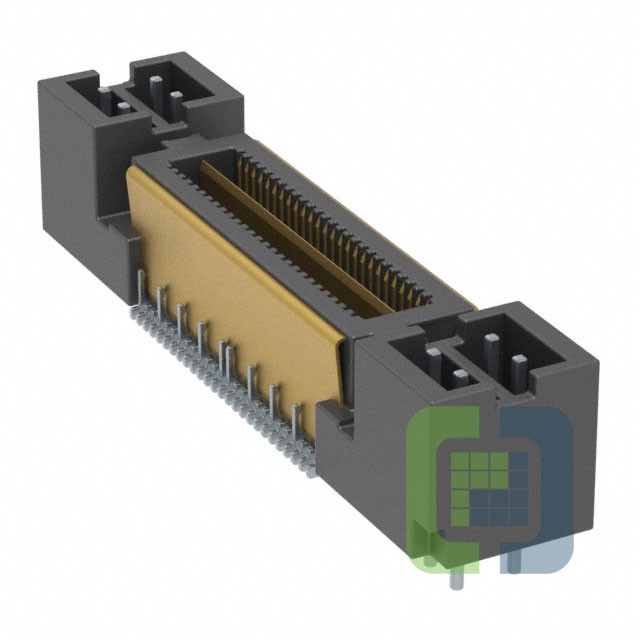

QMSS-016-06.75-L-D-DP-PC4
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY PLG 32P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QMSS-016-06.75-L-D-DP-PC4 Datasheet
-
ECAD Model
- Share
In Stock: 246
Can ship immediately
Pricing:
- 1$16.57
- 10$15.59897
- 25$15.16005
- 56$14.13661
- 112$13.64907
- 280$12.67416
- 504$12.43042
- 1,008$11.94296
Quote It
Technical Details
- Series:Q2™ QMSS
- Package:Tray
- Part Status:Active
- Connector Type:Differential Pair Array, Male
- Number of Positions:32
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Power Pins (8), Shielded
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:11mm
- Height Above Board:0.250" (6.35mm)
